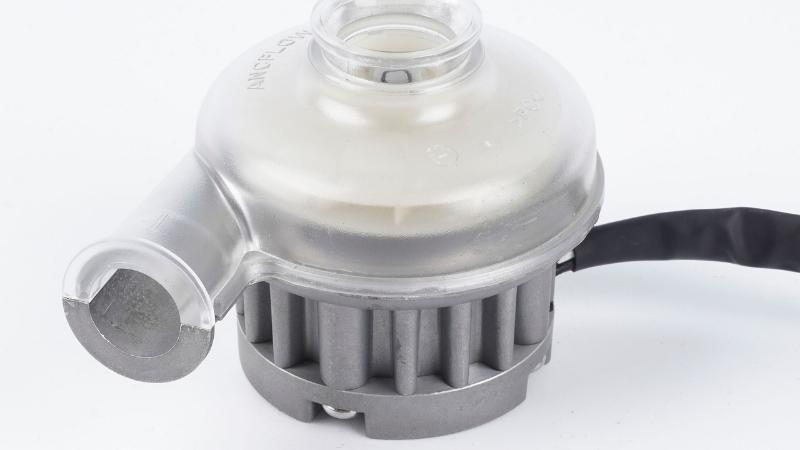

C6006 12V/24V/48V Brushless DC Blower

Description

Place of Origin	Nanjing, China
Brand Name	ANCFLOW
Model Number	C6006-12/24/48V-1/3
Part Name	Brushless DC Blower
Rated Power (W)	34
Rated Voltage (V)	12/24/48
Power Supply Type	DC
Driver Layout	External
max.Static Pressure	5.3kPa
max.Flow Rate	422LPM（25.3m³/h）
Rated Static Pressure	4.0kPa
Rated Flow Rate	161LPM（9.6m³/h）
Temperature Range(ambient)	-20℃~+50℃
Humidity Range(ambient)	≤85%RH
Size	60.576.055.0mm/60.576.048.0mm
Service life (L10 at 40℃)	20,000h
Certification	RoHS, CE
MOQ	1
Application Field	Medical&Big Health, Industial Automation

Quantity(Pieces)	1 - 100	101 - 1000	>1000
Est. Time(days)	15	25	To be negotiated

Product Model	AB C6006-24V-1	Brand	ANCFLOW
Product SPEC	AB C6006-24V-5.3kPa-422LPM	max.Speed	39,600 rpm
Part Name	Brushless DC Blower	max.Flow-rate	422LPM（25.m³/h）
Motor Driver	AC06B	max.flow Speed	49.16m/s
Motor Driver Layout	External	max.Static Pressure	5.3kPa
Lifetime(L10 at 40℃)	20,000h	Rated Speed	34,500rpm
Rate Voltage	24VDC	Rated Airflow	161LPM（9.6m³/h）
Voltage Range	14-28V	Rated Static Pressure	4.0kPa
Peak Power	43W	Work Temp.	-20℃~+50℃
Rated Power	34W	Humidity Range	≤85%RH
ID of Inlet	20.3mm	ID of Outlet	13.5mm
Mass	250g	Wire Length	300mm
Size	60.576.055.0mm	Bearing	Ball Bearing (NMB)
Housing Material	PC	Impeller Material	PA66
Application Scenarios	medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.
