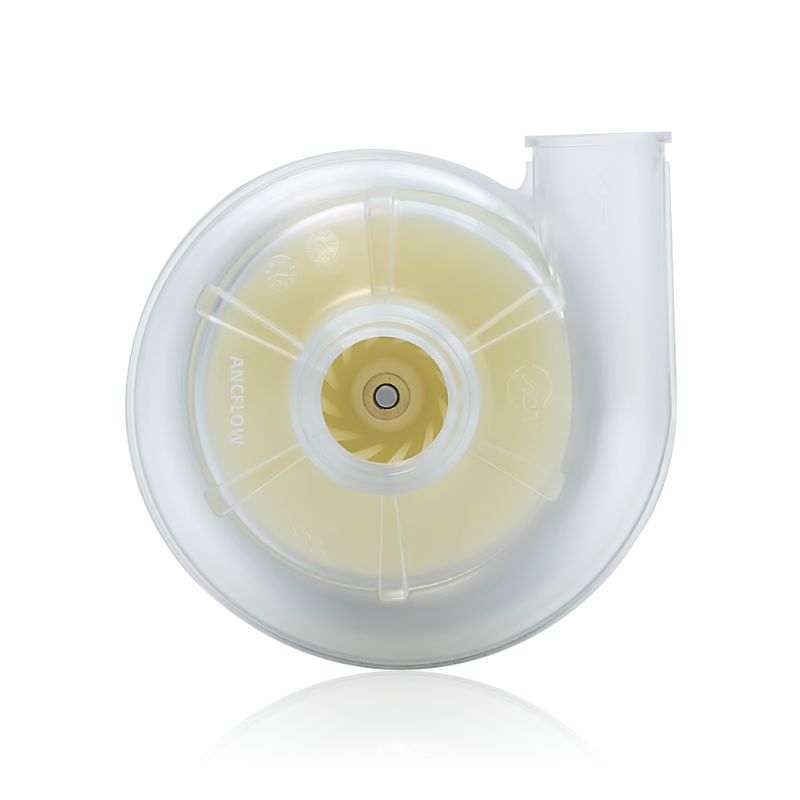

C6504 Brushless DC Blower

C6504 Brushless DC Blower

Description

Reviews

General

This specification applies to C6504-24V-10-1 brushless DC blower.

Product Feature

lExcellence performance with high static pressure and flow rate.

lNMB、NSK High reliability, with a long life of over 20,000 hours.

lCompact design and easy to integrate.

lLow noise.

Operating condition

Item Parameters Remarks
Rated Voltage 24V DC
Voltage Range 12~28V
Type of Motor DC Brushless Motor
Drive System 3 Phase, 2 Poles
Direction of Rotation CCW Looking down from the air inlet.
Kind of Gas air Noncorrosive gas
Mounting Direction Any direction Shaft vertical to ground, air inlet facing upwards
Maximum Power Supply Current 3.7±0.3 A Free Air
Import Power 88.8±7 W
Operating Temperature Range -20~50℃
Operating Humidity Range 10 ~ 95%RH No condensation
Storage Temperature Range -20℃~60℃
Storage Humidity Range 10 ~ 95%RH No condensation

Electrical characteristics

Item Parameters Remarks
Maximum Air Flow 570±30 LPM Free Air
Maximum Flow Speed 46600±2000 rpm 0kpa
Maximum Pressure 10.7±0.7 Kpa
Maximum Pressure Speed 54600±2500 rpm
Rated Rotation Speed 48700±2500 rpm
Rated Power Consumption 80±5 W
Rated Pressure 7±0.4 Kpa
Rated Air Flow 333±20 LPM
Coil Resistance 239.6-254.4 mΩ
Coil Inductance 170.7-181.3 μH
Speed constant 2916rpm/V
Insulation Class Class E
Insulation Resistance ≥100 MΩ DC500V,between terminal pins and shaft holder
Dielectric Strength ≤1 mA 700V/1s ≤1mA, AC700V for second between terminal pins and shaft holder
Hall sensor type SDC141HAZS TO-92 Digital signal High and low level
NTC type MF52A104F3950 (A1) Epoxy Encapsulated Thermistor

Mechanical characteristic and reliability

Item Parameters Remarks
Configuration Motor with centrifugal turbo Blade
Bearings Ball bearings
Blower housing Polycarbonate (PC)
Impeller PA6
Motor housing Aluminum
Lead Wire UL3239
Motor Connector Molex 43025-1000
Outline dimensions 64mm*57mm
Rotor Inertia 1625 g*mm² 195 g*mm²
Ingress protection IP54
Net Weight 260g
Mechanical noise 39 dB(A) Max Speed goes 18500rpm,inlet blocked 45° 1m outlet. Noise< 25 db。
Lifetime Min : 20000 hrs  voltage:24V;Accelerated aging test.

Note:Accelerated aging test at 50ambient temperature normal cleanliness according to ISO281Temperature dependency of lifetime according to IPC-9591factor 1.5 per 10℃

P-Q curve

Test condition: 24V input voltage, room temperature, humidity 60%RH

Blower Dimension Drawing

Label Description

Motor Phase Scequence

Blower Package

Product Safety

1. storage

The storage environment should not contain H2S, SO2, NO2, CL2 and other corrosive gases, especially organic silicon, formalin, phenolic substances. The presence of these corrosive toxic gases may cause the motor to stop running. Especially when the product need belong period storage, please be more carefully, and storage period should be within 6 months under ordinary temperature and humidity.

2. Overload

Excessive load should not be added on the motor, otherwise the motor may be damaged. Don’t use the motor under overloaded and locked condition more than 10seconds.

3. ESD

Antistatic measures should be taken during contact inspection and use of the motor.

4. Operating Conditions

Mark sure the environment temperature and humidity are within the product specification. The blower and/or motor shall not be exposed to humidity or liquid, or used in outdoor environment unless it’s designed for outdoor application and meets the requirements of outdoor use regulatory authorities. Humidity or liquid environmental environment will damage the blower and motor driver and cause electric shock injury to the operator.

5. Cannot be Reversed

The positive and negative poles of the power supply should NOT be connected reversely, otherwise the motor driver or the blower will be damaged.

6. Specified Voltage Range

The output voltage of the power supply should be NOT exceeding our specification, otherwise the blower and motor driver will be damaged or cannot working properly.

7. Proper Wiring Harness and Wiring

Please follow our specification to select the wire and connect the wire harness properly, otherwise the blower may not work properly, and its life will be also affected.

8. No Loops

The inlet and outlet of the blower shall NOT be connected to form a loop.

9. Greater Than 5mm in Diameter

During the use of the blower, the inlet and outlet should have cross-sectional area channels with diameters of ø 5mm holes to ensure the lowest flow rate of the blower and avoid overheating damage of the blower.
