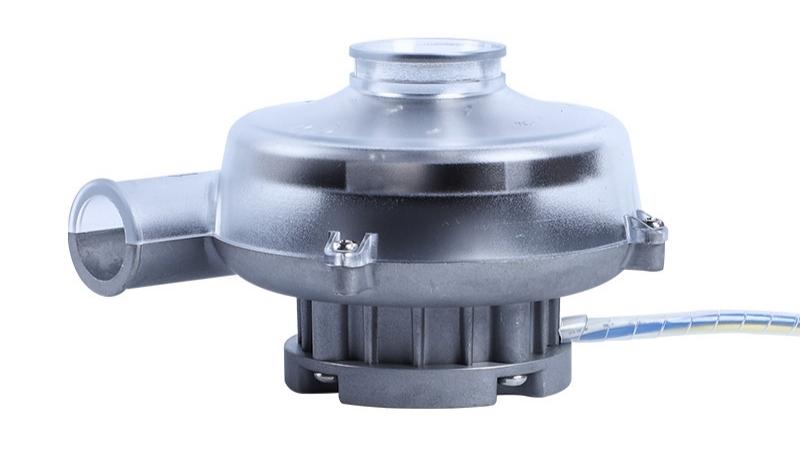

C90 Series Brushless DC Blower







C90 Series Brushless DC Blower - Compact, Low Noise



ADT C90 series Brushless DC Blower blower is a highly compact model, and can be easily integrated into an equipment. It is characterized in particular by its very compact size, while delivers a higher air flow and low noise, as well as competitive cost.



C90 Brushless DC Blower Blower

Technical data – C90 Series Brushless DC Blower Blower

Voltage

Air Flow Rate

Static Pressure

Power Consumption

24VDC

up to 1200L/min

up to 12.0kPa

1-240W



Features of Brushless DC Blower

  • Compact Size with external driver

  • max. Static Pressure: 12.0kPa(sealed pressure)

  • max. air flow: 1,200LPM (72.0 m³/h)

  • Speed Regulating by 0-5V voltage or PWM Signal

  • Speed Feedback: one pulse per rotation

  • Providing multiple protection functions: overvoltage, undervoltage, overcurrent, locked-rotor protection.

  • Providing fault feedback indication

  • Certifications: CE, RoHS, REACH



Advantages of Brushless DC Blower

  • Strong power

  • Compact design

  • Long life and maintenance free

  • Low noise

  • High efficiency, lower energy consumption

  • Competitive cost



Application Scenarios

  • Disinfection and sterilization equipment

  • Isolation chamber

  • Temperature and humidity test chamber

  • Automatic marshmallow machine

  • Cushioning air cushion machine

  • Industral Automation

​



Current catalog for Brushless DC Blower Blowers

View our PDF, view our Solution!

C9001 12V/24V/48V Brushless DC Blower

C9010 12V/24V/48V Brushless DC Blower

C9009 12V/24V/48V Brushless DC Blower
1 2 3 4

Product List

No. Product
Model 		Volt. max.Static
Pressure 		max. Flow Rate max.Power
max.Speed w/ Hall?
    V kPa LPM m³/h W rpm Y/N
1 C9002U 24
48 		12.0 1,190 71.4 190 35,000 Y
2 C9001 24 10.5 1,150 69.0 180 33,500 N
3 C9002 24
48 		10.5 1,160 69.6 175 33,500 Y
4 C9003 24 8.5 1,120 67.2 132 30,000 N
5 C9004 24
48 		8.5 1,070 64.2 135 30,000 Y
6 C9005 24 7.5 980 58.8 112 28,500 N
7 C9006 12
24
48 		7.5 1,024 61.4 118 28,500 Y
8 C9007 24 6.5 930 55.8 96 27,000 N
9 C9008 12
24
48 		6.5 969 58.1 100 27,000 Y
10 C9009 24 5.0 850 51.0 72 23,800 N
11 C9010 12
24
48 		5.0 872 52.3 75 23,800 Y

Product Portfolio Matrix

    C90-1 C90-2 C90-3 C90-4
1 Functions Same
2 Performance Same
3 Lifetime ≥20,000
4 Voltage Range 9-60VDC
5 Current Same
6 Ambient Temperature -20~+50℃ -40~+50℃ -20~+50℃ -40~+50℃
7 Ambient Humidity ≤80% ≤95% ≤80% ≤95%
8 Acid/Alkali-resisting No Yes No Yes
9 Corrosion Preventive No Yes No Yes
10 Size 103.2*95.4*69.3 103.2*95.4*69.3 103.2*95.4*69.3 103.2*95.4*69.3
11 Mass 310 350 460 500
12 Housing Material PC PC Aluminum Aluminum
13 Impeller Material Aluminum
Aluminum
Aluminum
Aluminum

Purchase FAQ

1.Are you a factory or only a trading company?

We have a factory to produce brushless DC blowers, fans, motors and motor drivers.

2.Why to choose us?

  1. Professional- we always offer system solutions based on your specific application scenarions.

  2. Reliable- we have a robust manufacturing and quality assurance system in place, can offer customers with high quality products with competitive price..

3.How abut the shipping cost?

Out price is an ex-work price. We can quote the price based on FOB, CIF&CNF as you like, then you can choose whether to use our forwarder or yours.

4. How about the price? Can you make it cheaper?

The price depends on product model types and its order size. The final quotation will be based on your full description of SOR or SPEC.

5.How about the lead time? What is the payment?

According to customer's specific requirements, if to choose a base model, then it will take 5-10 days after e-proof confirmed and your payment is received.
