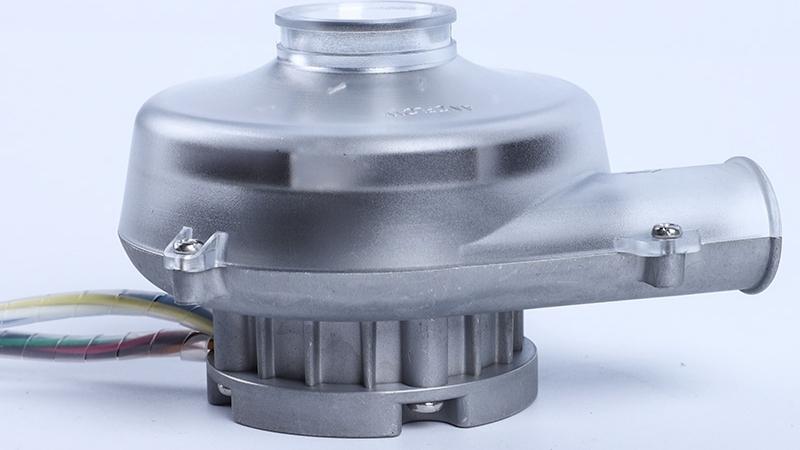

C9001 12V/24V/48V Brushless DC Blower

Description

Place of Origin	Nanjing, China
Brand Name	ANCFLOW
Model Number	C9001-24V-1
Part Name	Brushless DC Blower
Rated Power (W)	135
Rated Voltage (V)	24
Power Supply Type	DC
Driver Layout	External
max.Static Pressure	10.5kPa
max.Flow Rate	1,150LPM（69.0m³/h）
Rated Static Pressure	7.5kPa
Rated Flow Rate	447LPM（26.8m³/h）
Temperature Range(ambient)	-20℃~+50℃
Humidity Range(ambient)	≤85%RH
Size	103.295.469.3mm
Service life (L10 at 40℃)	20,000h
Certification	RoHS, CE
MOQ	1
Application Field	Medical & Big Health, Industrial Automation

Quantity(Pieces)	1 - 100	101 - 1000	>1000
Est. Time(days)	15	25	To be negotiated

Product Model	AB C9001-24V-1	Brand	ANCFLOW
Product SPEC	AB C9001-24V-10.5kPa-1150LPM	max.Speed	33,600 rpm
Part Name	Brushless DC Blower	max.Flow-rate	1,150LPM（69.0m³/h）
Motor Driver	AC01A	max.flow Speed	84.5m/s
Motor Driver Layout	External	max.Static Pressure	10.5kPa
Lifetime(L10 at 40℃)	20,000h	Rated Speed	29,200rpm
Rate Voltage	24VDC	Rated Airflow	447LPM（26.8m³/h）
Voltage Range	14-28V	Rated Static Pressure	7.5kPa
Peak Power	180W	Work Temp.	-20℃~+50℃
Rated Power	135W	Humidity Range	≤85%RH
ID of Inlet	26.0mm	ID of Outlet	17.0mm
Mass	310g	Wire Length	300mm
Size	102.8595.3569.37mm	Bearing	Ball Bearing (NMB)
Housing Material	PC	Impeller Material	Aluminium Alloy
Application Scenarios	medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.
