C90 Series Brushless DC Blower

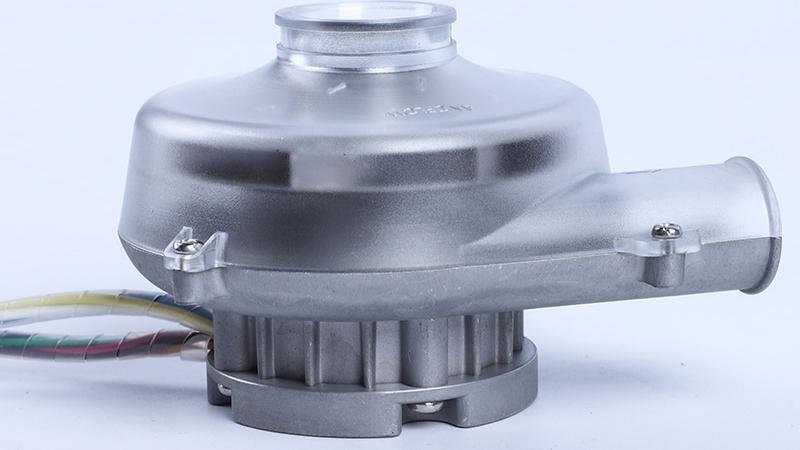

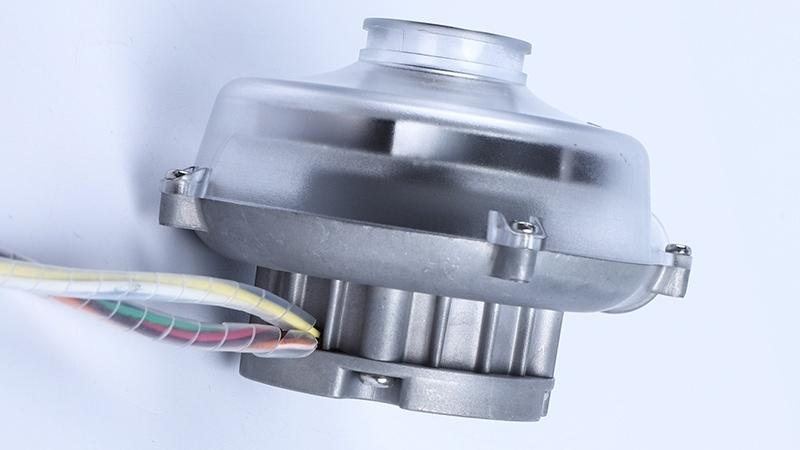

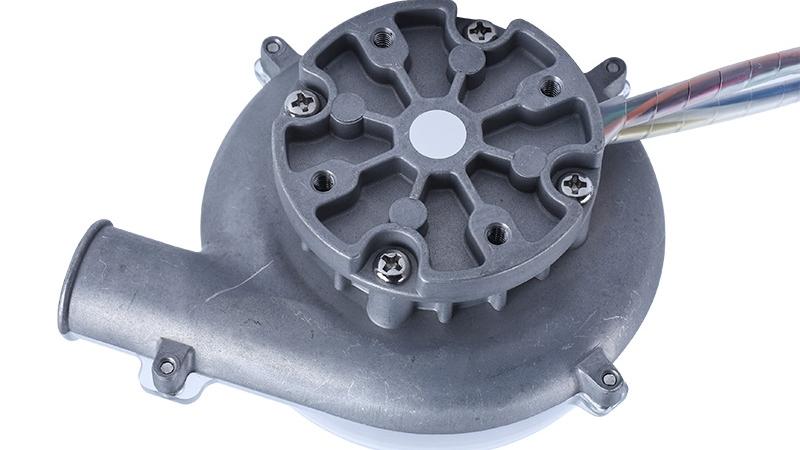

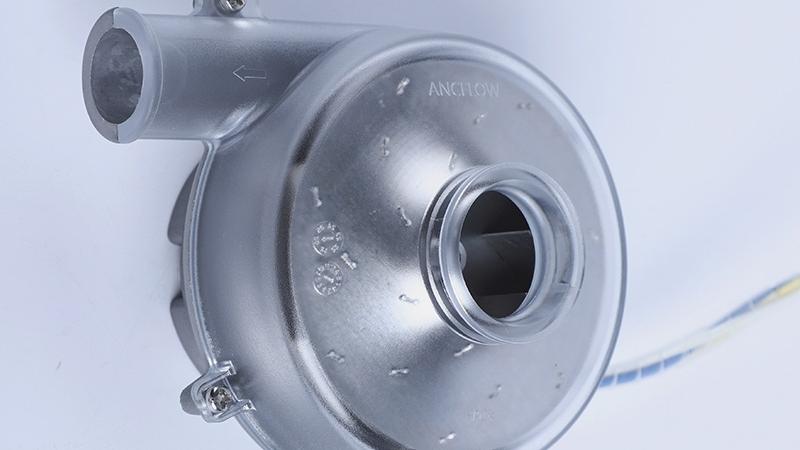

C9008 12V/24V/48V Brushless DC Blower

C9008 12V/24V/48V Brushless DC Blower
C9008 12V/24V/48V Brushless DC Blower
C9008 12V/24V/48V Brushless DC Blower
C9008 12V/24V/48V Brushless DC Blower
C9008 12V/24V/48V Brushless DC Blower

Description

Reviews

Quick Overview

Place of Origin Nanjing, China
Brand Name ANCFLOW
Model Number C9008-24V-1
Part Name Brushless DC Blower
Rated Power (W) 75
Rated Voltage (V)12/24/48
Power Supply Type DC
Driver Layout External
max.Static Pressure 6.5kPa
max.Flow Rate 969LPM(58.1m³/h)
Rated Static Pressure 5.0kPa
Rated Flow Rate 422LPM(25.3m³/h)
Temperature Range(ambient) -20℃~+50℃
Humidity Range(ambient) ≤85%RH
Size103.2*95.4*69.3mm
Service life (L10 at 40℃) 20,000h
Certification RoHS, CE
MOQ 1
Application Field Medical & Big Health, Industrial Automation


Delivery Leadtime

Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 15 25 To be negotiated


Detailed Parameters

Product Model AB C9008-24V-1 Brand ANCFLOW
Product SPEC AB C9008-24V-6.5kPa-969LPM max.Speed 27,000 rpm
Part Name Brushless DC Blower max.Flow-rate 969LPM(58.1m³/h)
Motor Driver AC06B max.flow Speed 71.2m/s
Motor Driver Layout External max.Static Pressure 6.5kPa
Lifetime(L10 at 40℃) 20,000h Rated Speed23,400rpm
Rate Voltage 24VDC Rated Airflow 422LPM(25.3m³/h)
Voltage Range 14-28V Rated Static Pressure 5.0kPa
Peak Power 100W Work Temp. -20℃~+50℃
Rated Power 75W Humidity Range ≤85%RH
ID of Inlet 26.0mm ID of Outlet 17.0mm
Mass 320g Wire Length 300mm
Size103.2*95.4*69.3mm
Bearing Ball Bearing (NMB)
Housing Material PC Impeller MaterialAluminium Alloy
Application Scenarios medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.


Performance Curves


Interface Drawing

C90-1/C90-2 Series
