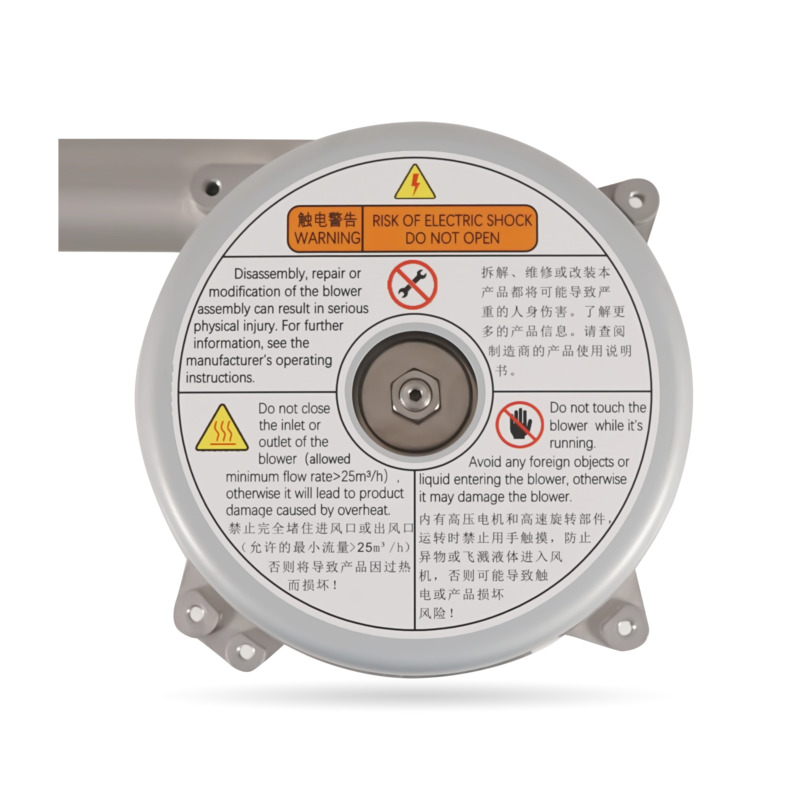

S145 Series Side Suction Brushless Blower
S14502-220V-1 Brushless Blower
Description
Reviews
Product Feature
- High efficiency
- energy saving
- environmental protection
- safety, small size
- long life
- adjustable speed
- 100% calibration and factory inspection
Application
- Medical Equipment.
- Nursing Equipment.
- Fume/Smoke Extraction.
- Environmental Protection and Cleaning Equipment.
- Printing Machine.
- Lithium Battery Equipment.
- Sterilizing Equipment
Technical Data
Dimensions
Remark
1) Input voltage range: 200-264VAC, 50/60Hz, single phase.
2) Working environment temperature: 0℃~50℃.
3) Storage temperature: -40℃~85℃
4) Speed control: PWM or analog input voltage (default), 0-10VDC, 10mA maximum current. The sensitivity adjuster can be used to adjust the maximum speed corresponding to 0-10VDC.
5) Others: The air inlet and outlet, all cooling ducts and ventilation holes cannot be blocked. The air inlet and outlet must be free of any lubricating oil, grease and foreign particles.
6) The fan connector sheath model is Tyco Electronics 350810-1 with plug. Customers need to match the connector sheath specification model 350809-1, and match it with 18AWG cable and matching terminals. The corresponding connecting cable can be ordered separately.
