S80 Series Brushless DC Blower

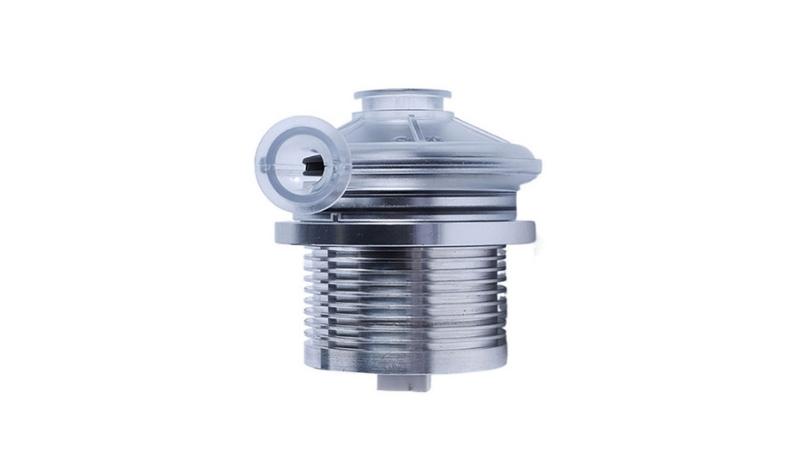

S8001 24V Brushless DC Blower

S8001 24V Brushless DC Blower

Description

Reviews

Quick Details

Place of Origin Nanjing, China
Brand Name ANCFLOW
Model Number S8001-24V-1
Part NameBrushless DC Blower
Rated Power (W) 185
Rated Voltage (V) 24
Power Supply TypeDC
Driver LayoutIntegrated
max.Static Pressure
17.0kPa
max.Flow Rate
1,000LPM(60.0m³/h)
Rated Static Pressure
13.0kPa
Rated Flow Rate
430LPM(25.8m³/h)
Temperature Range(ambient)
-20℃~+50℃
Humidity Range(ambient)
≤85%RH
Size
85.3*82.2*82.0mm
Service life (L10 at 40℃)
20,000h
Certification RoHS, CE
MOQ1
Application FieldMedical & Big Health, Industrial Automation


Delivery Leadtime

Quantity(Pieces) 1 - 100 101 - 1000 >1000
Est. Time(days) 15 25 To be negotiated


Product Model Naming Rules


Detailed Parameters

Product Model AB S8001-24V-1 Brand ANCFLOW
Product SPEC AB S8001-24V-17.0kPa-1000LPM max.Speed 54,500 rpm
Part Name Brushless DC Blower max.Flow-rate 1,000LPM(60.0m³/h)
Motor Driver AC05A max.flow Speed 102.39m/s
Motor Driver Layout Integrated max.Static Pressure 17.0kPa
Lifetime(L10 at 40℃) 20,000h Rated Speed 48,000rpm
Rate Voltage 24VDC Rated Airflow 430LPM(25.8m³/h)
Voltage Range 14-28V Rated Static Pressure 13.0kPa
Peak Power 240W Work Temp. -20℃~+50℃
Rated Power 185W Humidity Range ≤85%RH
ID of Inlet 22.7mm ID of Outlet 14.6mm
Mass 380g Wire Length 300mm
Size 85.3(L)*82.2(W)*82.0(H)mm Bearing Ball Bearing (NMB)
Housing Material PC Impeller Material PA66
Application Scenarios medical smoke removal equipment, ventilator, hydrogen fuel cell, cold chain sterilization equipment, disinfection and sterilization equipment, oxygen generator, dental equipment, negative pressure isolation chamber, PARR, moxibustion smoking, household fresh air system, temperature and humidity control, environmental monitoring equipment, gas detector, air cushion aerator, glove box, industrial smoke/dust removal equipment, liquid atomization, cooling and drying equipment, agricultural machinery, fishery aerator, etc.
